HOMER Analyzer ISM 2450 MHz

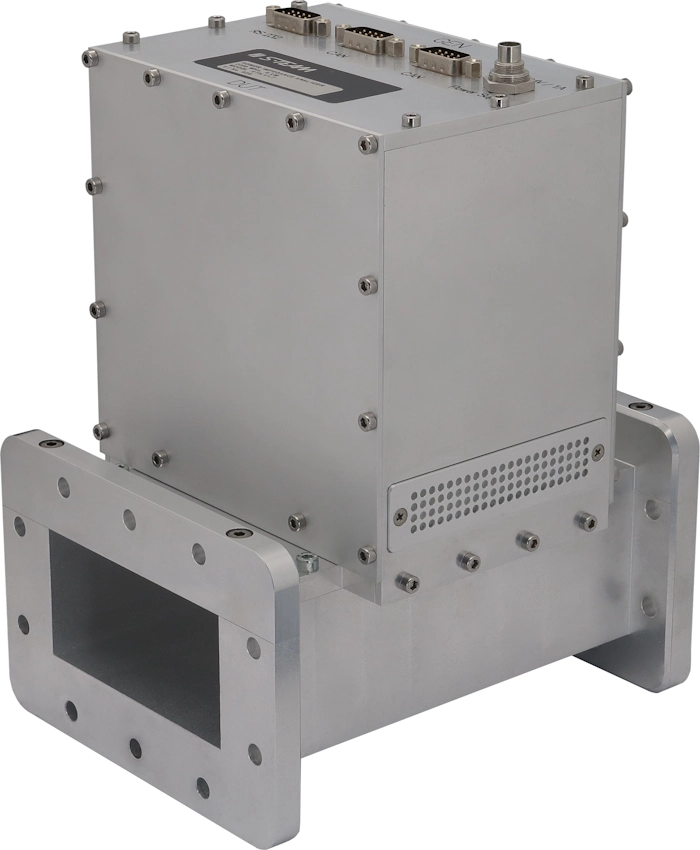

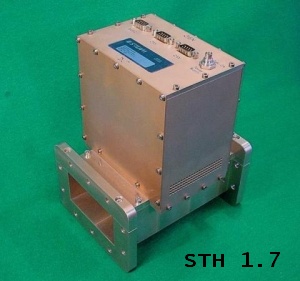

The HOMER-Series STH 2450 MHz Analyzer is an automatic impedance and power measurement system based on the R26 (WR340) waveguide. The system works under the full-power operating conditions of magnetron-based microwave generators and measures both magnitude and phase of reflection coefficient as well as incident, reflected and absorbed powers and frequency. The system is designed for CW, high-ripple (Rectified) and Pulsed sampling modes. STH can be:
- Used autonomously without external controller.
- Controlled from a personal computer or another controller via RS232 or CAN Bus interface.
- Integrated into a LabVIEW environment.
The peak working power is fixed at the manufacture time as specified in the customer’s order. The system comes with its own software (Server) and documentation
