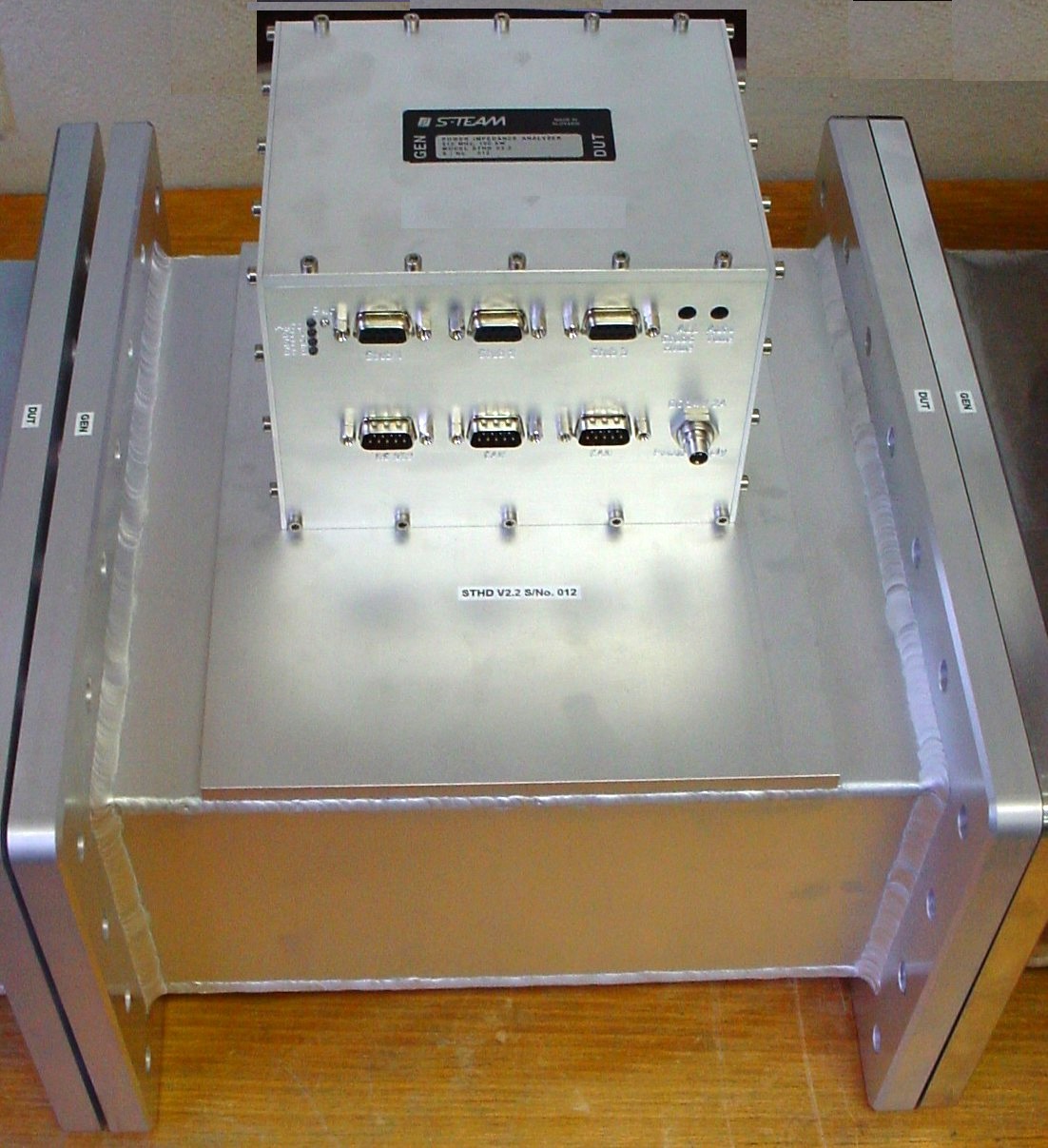

HOMER Analyzer ISM 900 MHz

The HOMER-Series STH 900-MHz Analyzer is an automatic impedance and power measurement system based on the R9 (WR975) waveguide.The system works under the full-power operating conditions of magnetron-based microwave generators and measures both magnitude and phase of reflection coefficient as well as incident, reflected and absorbed powers and frequency. The system is designed for CW, high-ripple (Rectified) and Pulsed sampling modes. STH can be:

  • Controlled from a personal computer or another controller via RS232, RS422, CAN, or Ethernet/IP interface.
  • Integrated into a LabVIEW environment.

The system comes with its own software (Server) and documentation.
