DC114: Directional Coupler for WR340 Waveguide

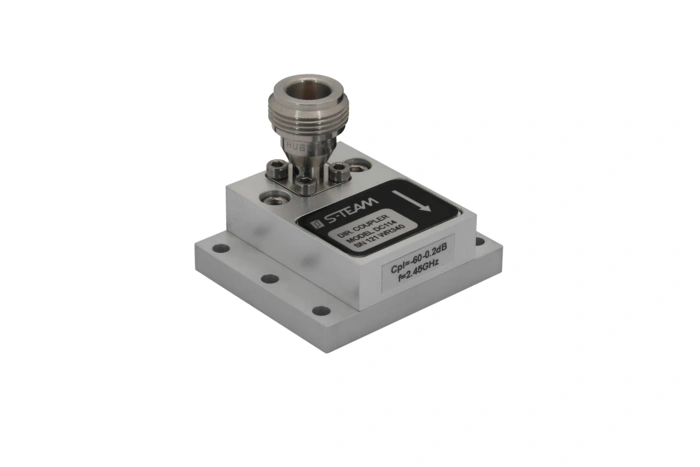

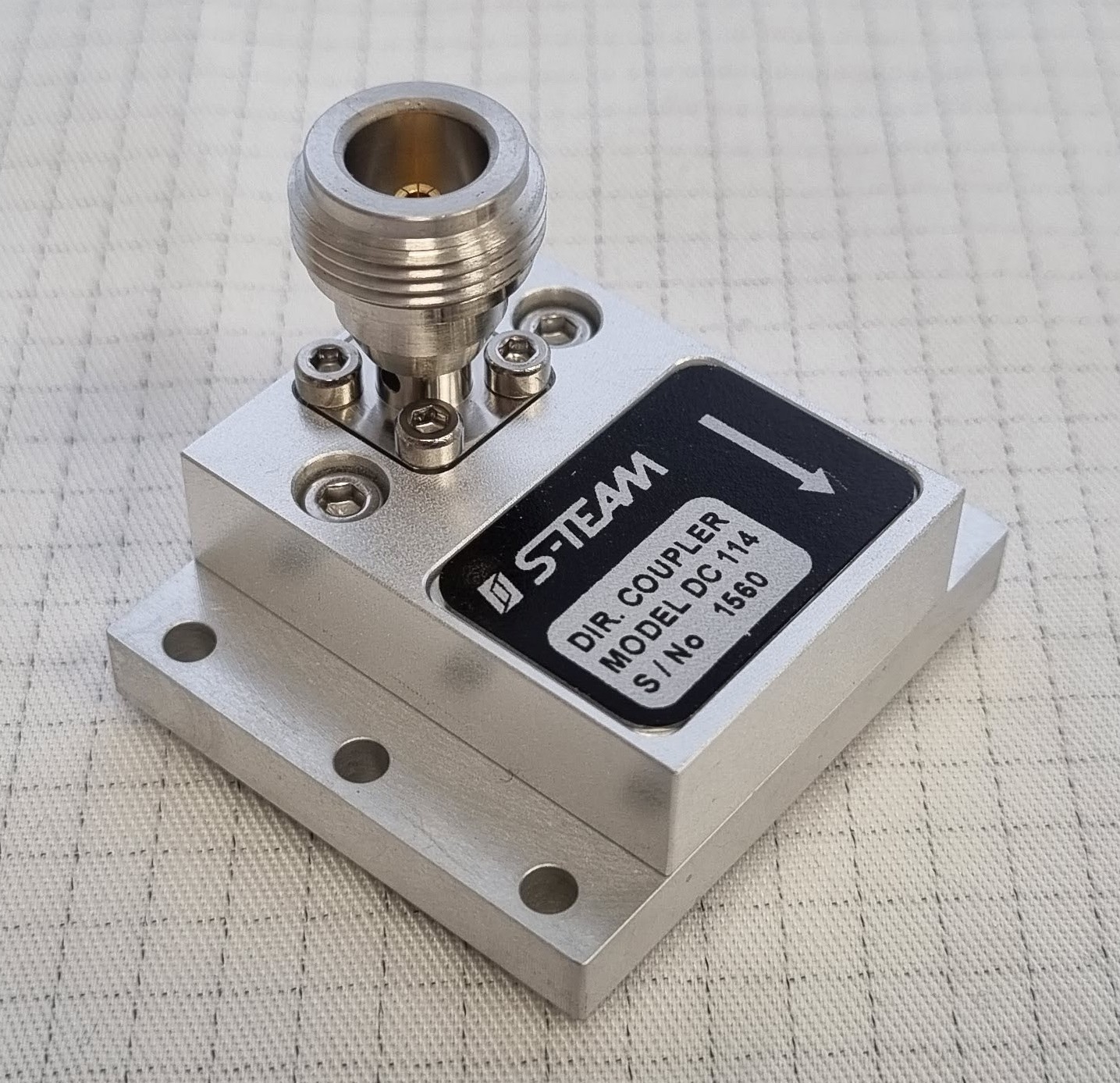

DC114 is a small-housing directional coupler intended for sampling incident or reflected waves in high-power 2450 MHz industrial applications using an WR340 (R26) rectangular waveguide.
The coupler is fixed to the waveguide with six M3 or similar-diameter screws after machining of appropriate openings in the broad waveguide wall.
Simply reversing the coupler causes it to sample the wave propagating in the opposite direction.
| Specifications | |
|---|---|
| Frequency range | 2425 – 2475 MHz |
| Coupling factor / Max input power | -50 dB / 3 kW -60 dB / 30 kW -70 dB / 50 kW |
| Directivity | 25 dB min |
| Output connectors | Nf or SMAf |
| VSWR (N, SMA) | 1.25 max |
| Waveguide of destination | WR340 |
