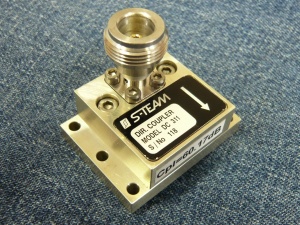

DC311: Miniature Directional Coupler for R58 Waveguide
DC311 is a miniature directional coupler intended for sampling incident or reflected waves in high-power 5.8 GHz industrial applications using an WR159 (R58) rectangular waveguide.
The coupler is fixed to the waveguide with six M3 or similar-diameter screws after machining of appropriate holes in the broad waveguide wall.
Simple reversing the coupler causes it to sample the wave propagating in the opposite direction.
| Specifications | |
|---|---|
| Frequency range | 5700 – 5900 MHz |
| Coupling factor | -60 dB ±1 dB standard -50 dB ±1dB available on special order -70 dB ±1dB available on special order |
| Directivity | 25 dB min |
| Output connectors | Nf (SMAf available upon request) |
| VSWR (N, SMA) | 1.6 max |
| Waveguide of destination | WR159 |
