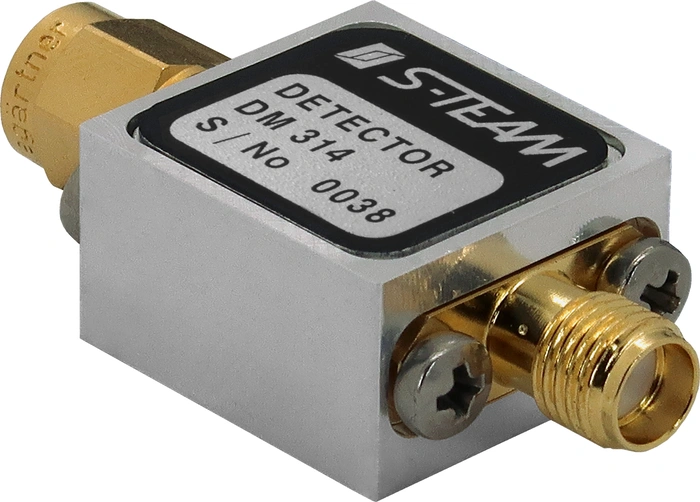

DM314: Fast Temperature-Stable Microwave Detector

DM314 is a a tunnel-diode, coaxial microwave detector with SMA-connector intended for 5.8 GHz industrial applications. The detector delivers well-scaled DC voltage as a function of incident microwave power.

The use of a tunnel diode provides the detector with improved temperature stability and fast pulse response.

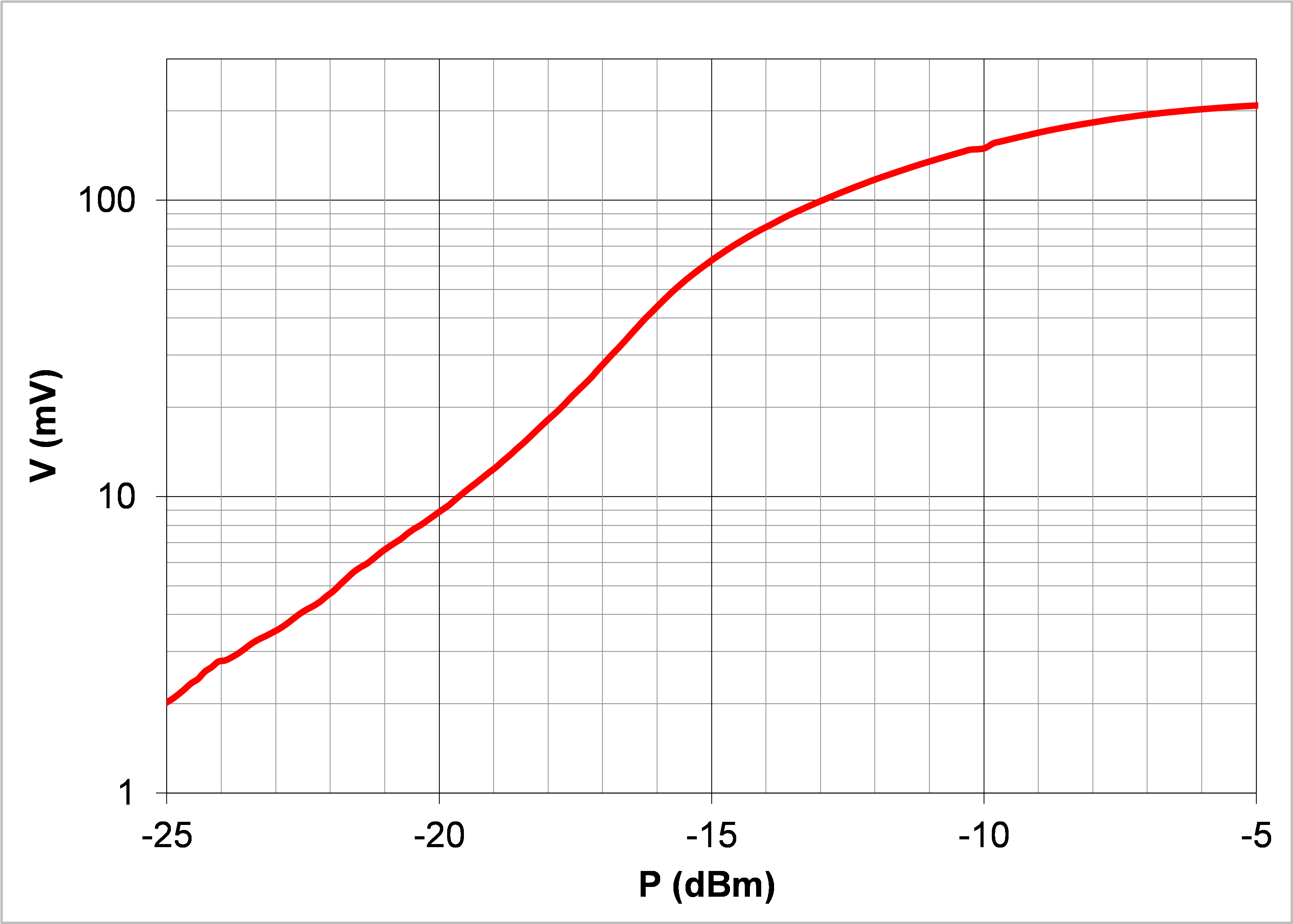

Typical transfer characteristic (f=5.8 GHz, Rload=33k, Ta=25C):
