WTL171: Adapter from WR340 Waveguide to 7/8" EIA Coaxial Line

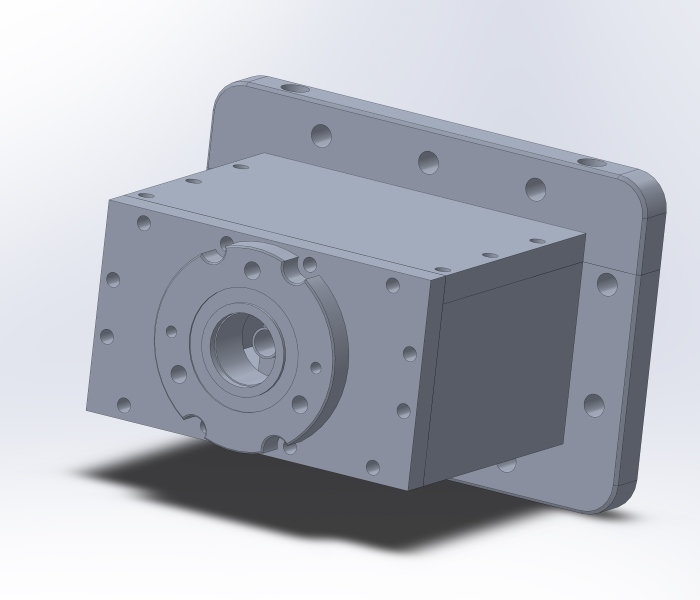

WTL171 is an inline waveguide-to-coax adapter from an WR340 (R26) waveguide to a 7/8" EIA coaxial transmission line, where the axis of the coaxial line coincides with the longitudinal waveguide axis. It is specially designed for integration of waveguide-type HOMER Analyzers and Autotuners into high-power coaxial systems.
| Specifications | |
|---|---|
| Frequency range | 2425 – 2475 MHz |
| Port 1 | WR340 (R26) |
| Port 2 | Coax 7/8" EIA |
| Adapter type | Inline |
| Minimum return loss | 25 dB |
| Peak working power | 3 kW |
