WTS141: Step Transition from WR340 Waveguide to WR430 Waveguide

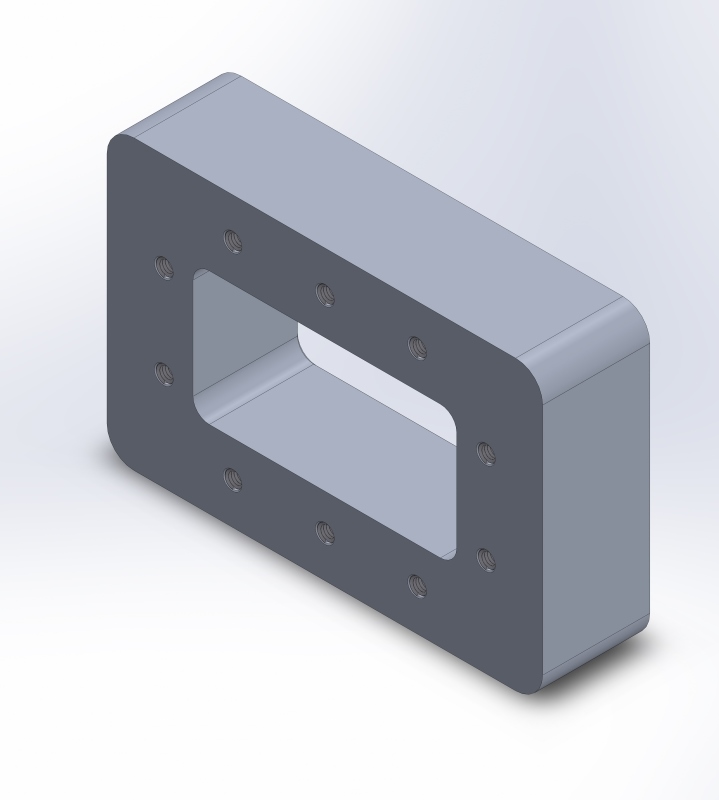

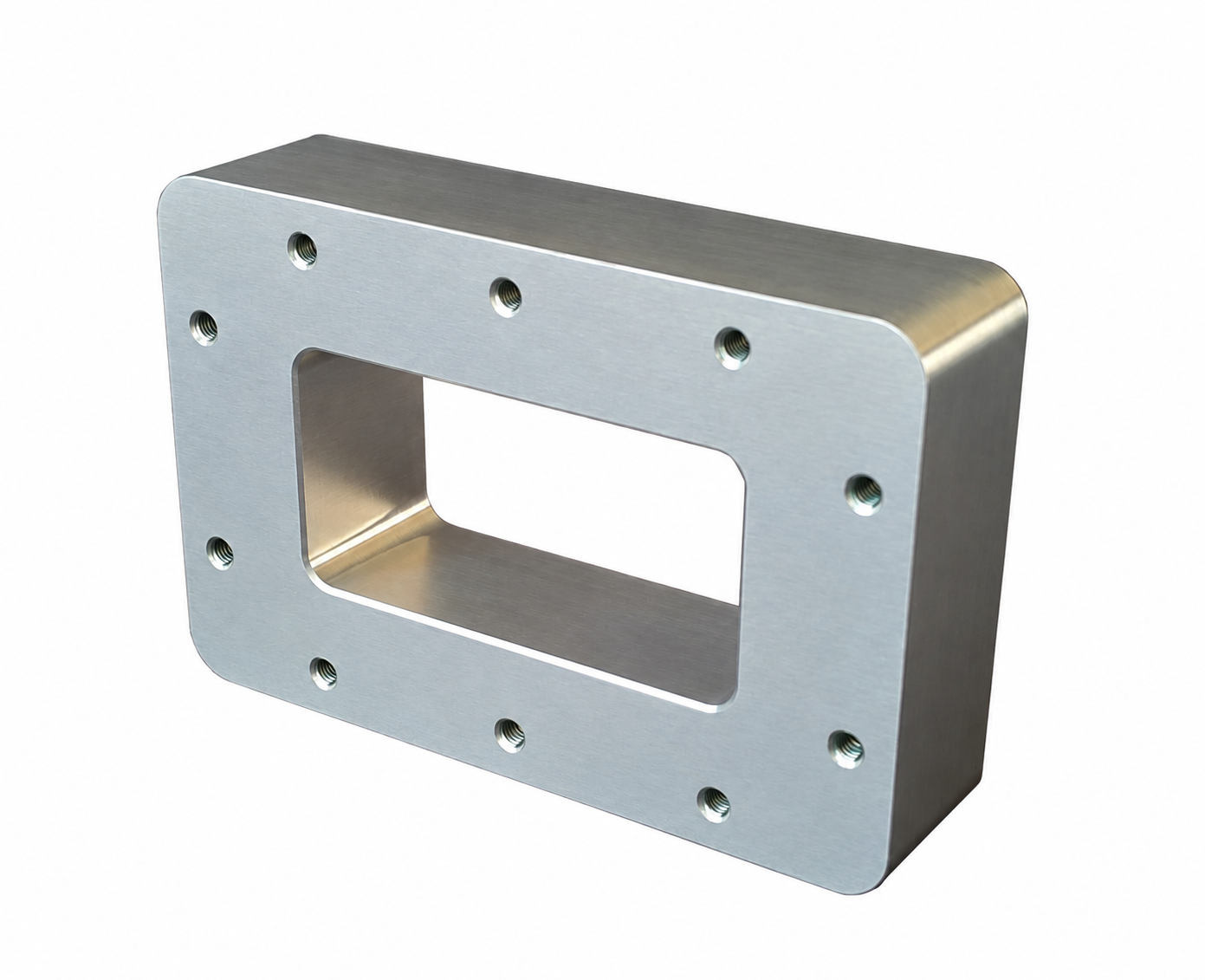

WTS141 is a step transition with the shortest possible length between WR340 (R26) and WR430 (R22) waveguides, intended for applications where space restrictions are critical. Both waveguide faces are fitted with M6 threaded holes.
| Specifications | |
|---|---|
| Frequency range | 2200 – 2700 MHz |
| Port 1 | WR340 (R26) |
| Port 2 | WR430 (R22) |
| Transition type | Net Step |
| Return loss (2425 – 2475 MHz) | > 30 dB |
| Peak working power | 30 kW |
