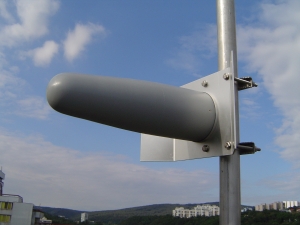

STA3: Log-Periodic Antenna 1700 – 2700 MHz, 10.5 dBi
The product STA3 requires a minimum order of 50 units.
The STA3 is a light duty broadband logperiodic antenna with low VSWR and flat frequency response of gain.
The STA3 is suitable for DCS, PCS, CDMA, UMTS, WiFi and LTE applications (e.g. personal repeaters) because of its high front-to-back ratio and sidelobes suppression.
| Specifications | |
|---|---|
| Frequency range | 1700 – 2700 MHz |
| Gain | 10.5 dBi |
| VSWR | < 1.5 |
| 3 dB beam width | 45° E-plane, 60° H-plane |
| Sidelobes supression (inc. front-to-back) | > 25 dB |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ω |
| RF input connector | Nf |
| Maximum wind velocity | 150 km/h |
| Temperature range | -40 to +60 °C |
| Dimensions (L x W x H) | 370 x 259 x 150 mm |
| Mass | 1.3 kg |
| Material | Antenna: Duralumin Radome: Gray Polyethylene, UV protected Mounting kit: Stainless Steel |
| Mounting | Hardware included for mast diameter 30 to 45mm |
