BD214B: Bidirectional Detector for WR975 Waveguide, with DC Amplifiers

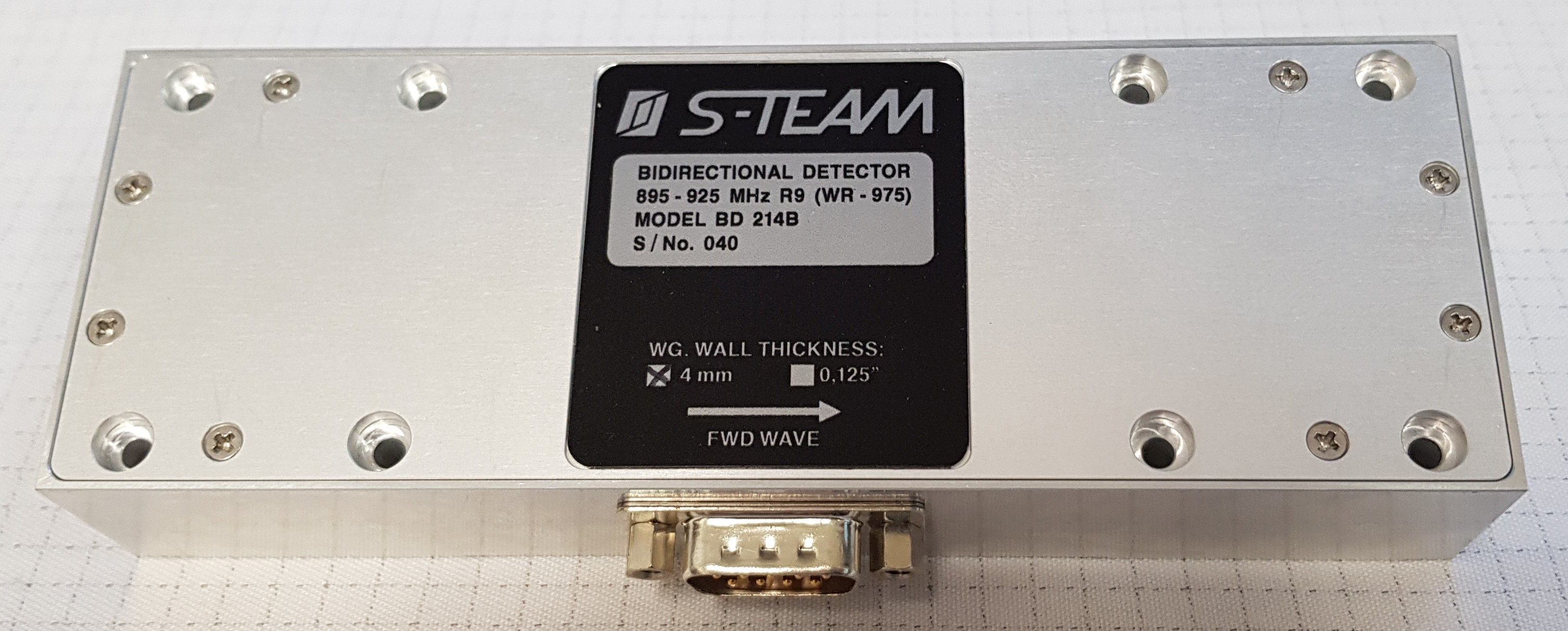

BD214B is a bidirectional detector intended for simultaneous sampling of incident and reflected waves in high-power 900 MHz industrial applications using an WR975 (R9) rectangular waveguide. The bidirectional detector combines the following components:

  • 4-port directional coupler
  • Attenuators
  • Zero-bias Schottky diode detectors
  • Low noise operational amplifiers

The unit delivers two DC voltages in the range 0 to approximately 9 V. The voltages are functions of the powers associated with waves propagating in opposite directions in the parent waveguide. Standard maximum working powers Pmax are 10 kW and 100 kW.

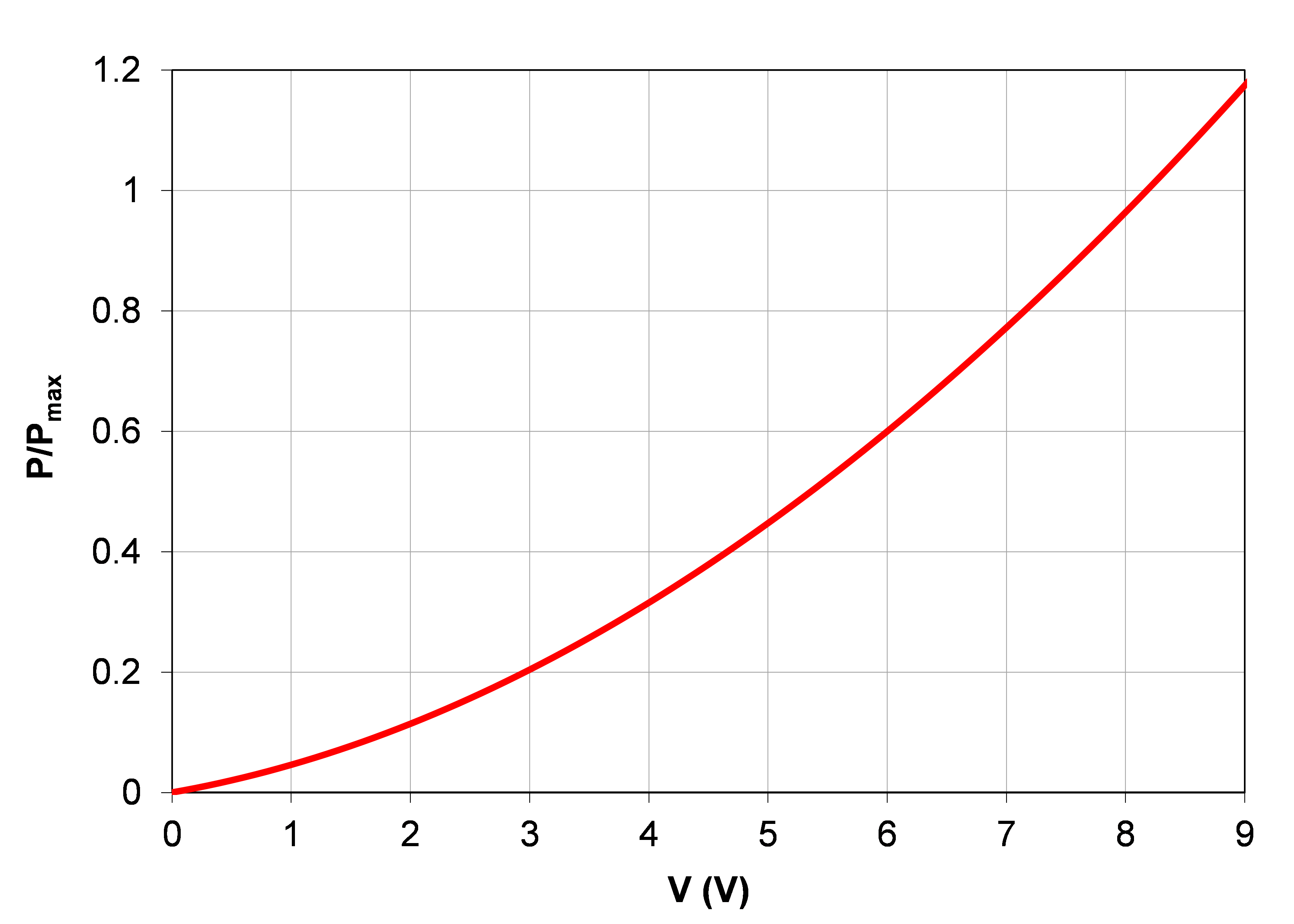

Typical Transfer Curve, TA=25°C, f=915 MHz
