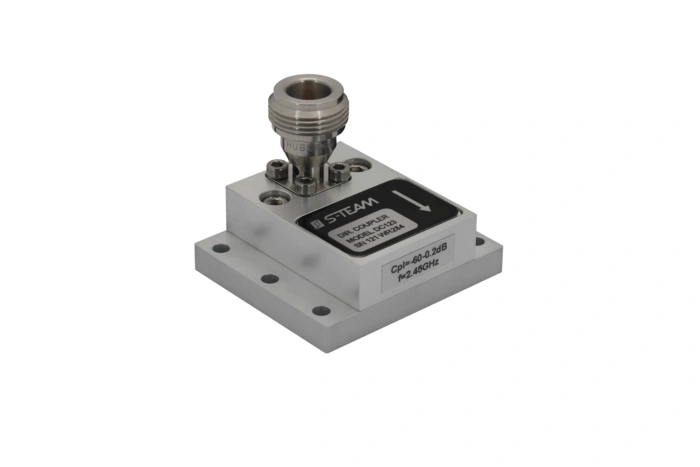

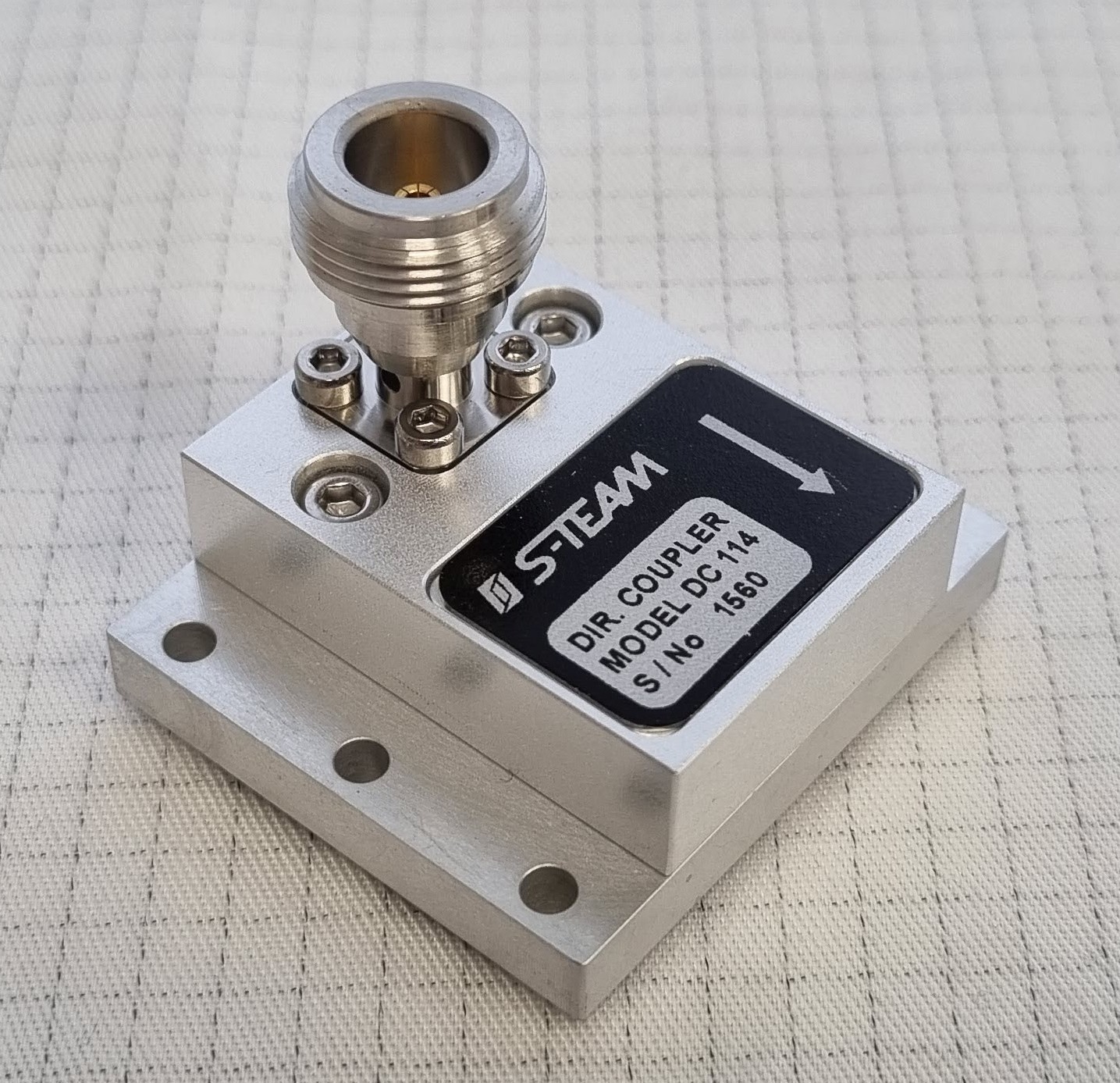

DC123: Directional Coupler for R32 Waveguide
DC123 is a small-housing directional coupler intended for sampling incident or reflected waves in high-power 2450 MHz industrial applications using an R32 (WR284) rectangular waveguide.
The coupler is fixed to the waveguide with six M3 or similar-diameter screws after machining of appropriate holes in the broad waveguide wall.
Simply reversing the coupler causes it to sample the wave propagating in the opposite direction.
| Specifications | |
|---|---|
| Frequency Range | 2425 – 2475 MHz |
| Coupling Factor | -50 dB ± 1dB -60 dB ±1 dB (default) -70 dB ±1dB |
| Directivity | 25 dB min |
| Output connector | Nf (SMAf available upon request) |
| VSWR (N, SMA) | 1.25 max |
| Waveguide of destination | R32 (72.14 mm x 34.04 mm, wall thickness 2 mm) |
