WTT141: Tapered Transition from WR340 Waveguide to WR430 Waveguide
The product WTT141 is obsolete.
Please consider the product WTS142.

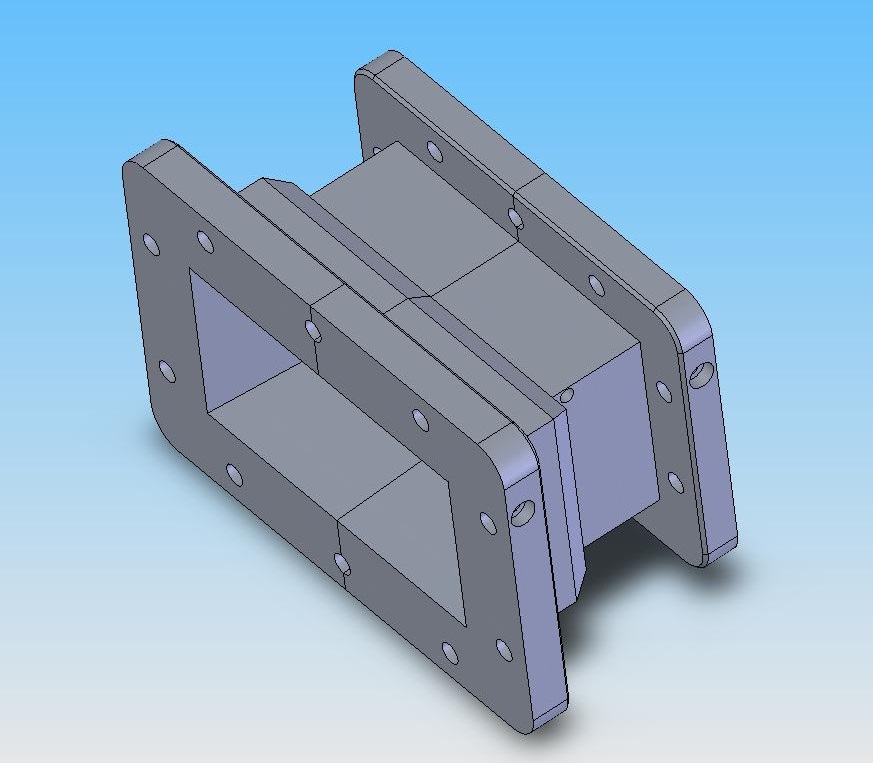

WTT141 is a tapered transition between WR340 (R26) and WR430 (R22) waveguides intended for applications where a smooth transition between waveguides is desirable.
| Specifications | |
|---|---|
| Frequency range | 2200 – 2700 MHz |
| Port 1 | WR340 (R26) |
| Port 2 | WR430 (R22) |
| Transition type | Taper |
| Return loss (2425 – 2475 MHz) | > 30 dB |
| Peak working power | 30 kW |
