WTS142: Step Transition from WR340 Waveguide to WR430 Waveguide

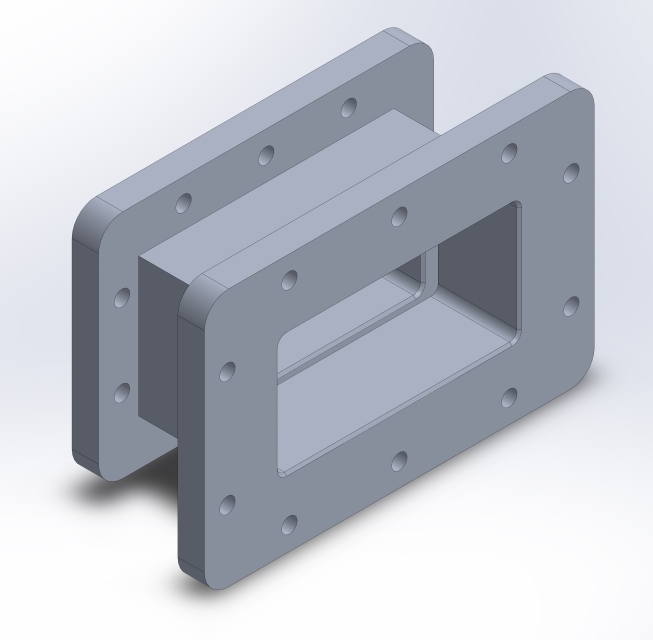

WTS142 is a step transition between WR340 (R26) and WR430 (R22) waveguides with an extension on the WR340 port that enable the use of common M6 or similar bolts with nuts for attaching the transition to HOMER Analyzers, Autotuners or other components.
| Specifications | |
|---|---|
| Frequency range | 2200 – 2700 MHz |
| Port 1 | WR340 (R26) |
| Port 2 | WR430 (R22) |
| Transition type | Step |
| Return loss (2425 – 2475 MHz) | > 30 dB |
| Peak working power | 30 kW |
