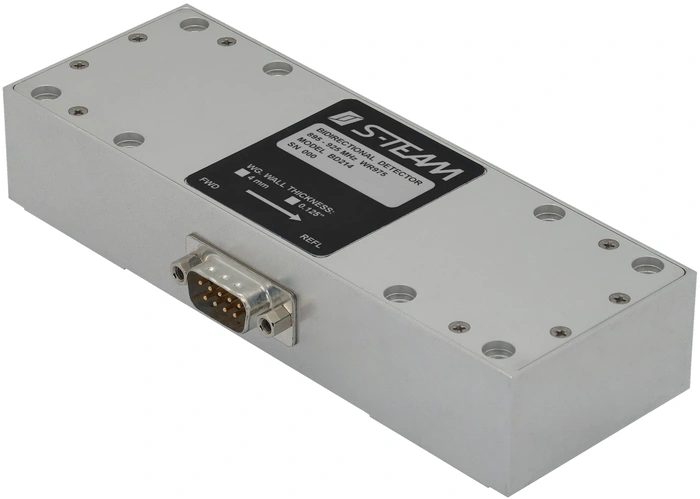

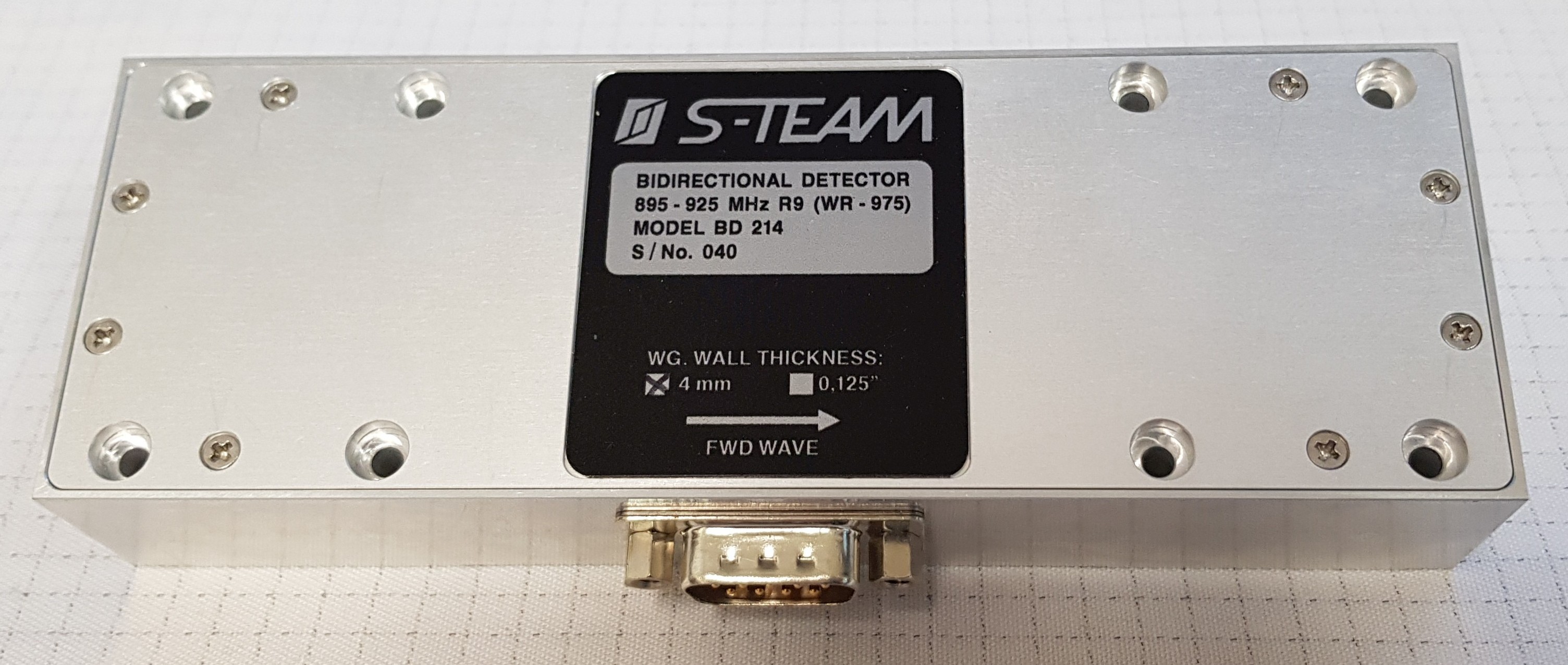

BD214: Bidirectional Detector for WR975 Waveguide

BD214 is a bidirectional detector intended for simultaneous sampling of incident and reflected waves in high-power 900 MHz industrial applications using an WR975 (R9) rectangular waveguide. The bidirectional detector combines the following components:

  • 4-port directional coupler
  • Attenuators
  • Zero-bias Schottky diode detectors

The detector delivers two well-scaled DC voltages proportional to power of the waves propagating in forward and reverse directions in the parent waveguide. Standard maximum working powers Pmax are 10 kW and 100 kW.

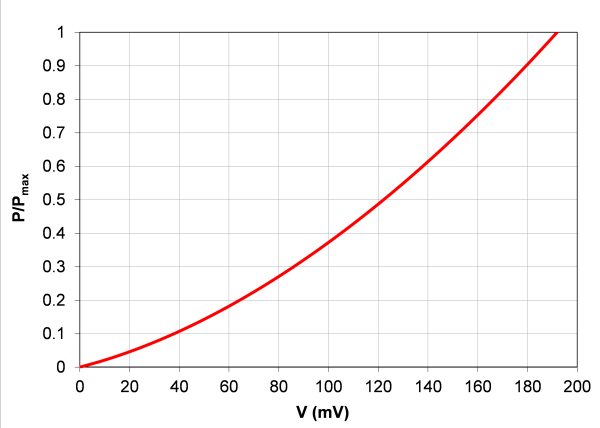

Transfer Curve (f = 915 MHz, RLOAD = 33 kΩ, TA = 25°C)
