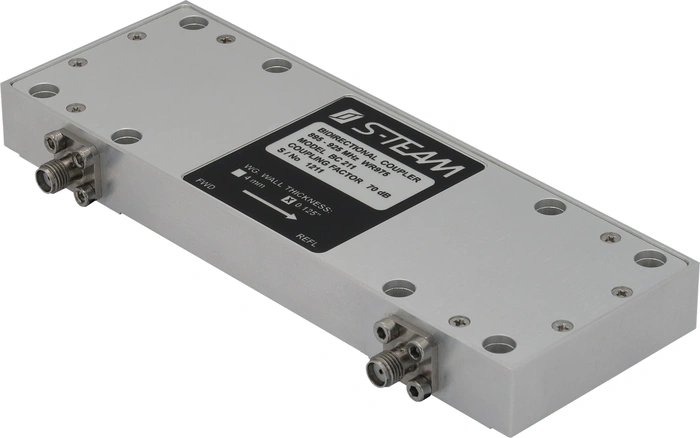

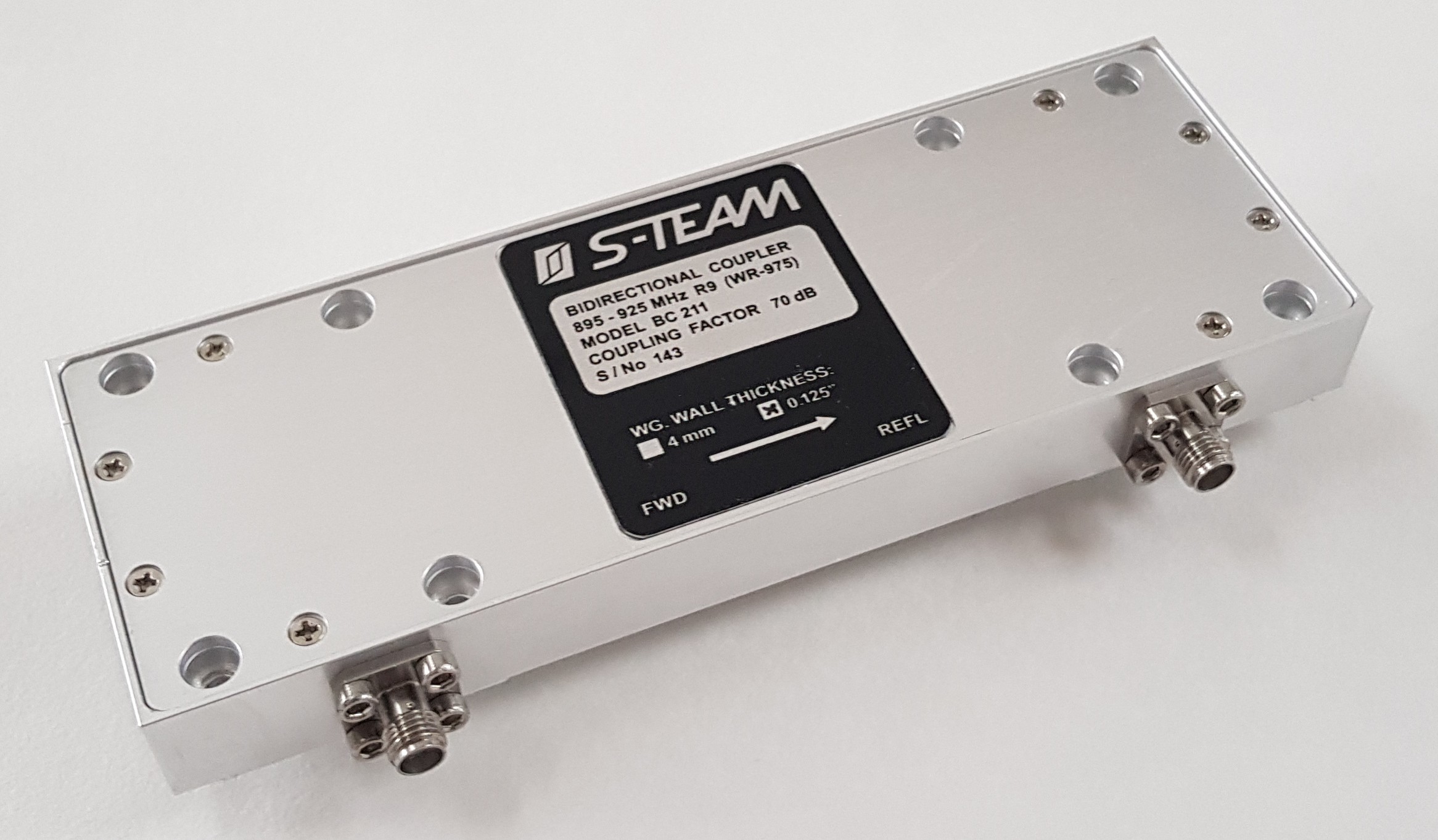

BC211: Bidirectional Coupler for R9 Waveguide
BC211 is a dual directional coupler intended for simultaneous sampling of both incident and reflected waves in high-power 900 MHz industrial applications using an R9 (WR975) rectangular waveguide.
Two coupling factor options are available: -60 dB for maximal input power 10 kW in the waveguide, and -70 dB for maximal input power 100 kW.
The coupler is fixed to the parent waveguide using eight M3 or similar-diameter screws after machining of appropriate holes in the broad waveguide wall. The parent waveguide (standard or customized) can optionally be part of delivery. The standard length is 300 mm.
| Specifications | |
|---|---|
| Frequency Range | 895 – 925 MHz |
| Coupling Factor | -60 dB (max. input power 10 kW) -70 dB (max. input power 100 kW) |
| Directivity | 25 dB min |
| Output connector | 2 x SMAf |
| VSWR (SMA) | 1.25 max |
| Waveguide of destination | R9 (247.65 mm x 123.825 mm) |
