DM214: Fast Temperature-Stable Microwave Detector

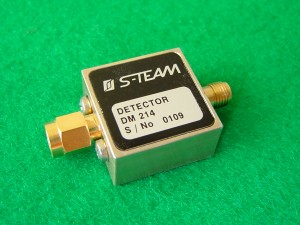

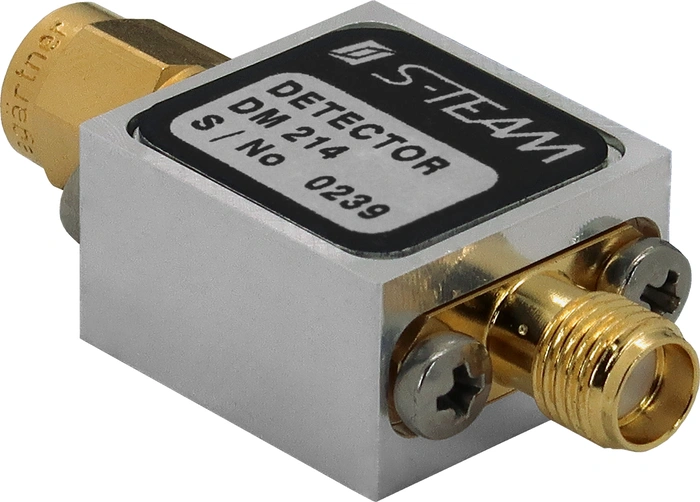

DM214 is a tunnel-diode, coaxial microwave detector intended for 2450-MHz industrial applications. The detector delivers well-scaled DC voltage proportional to the input power.

The use of a tunnel diode provides the detector with improved temperature stability and fast pulse response.

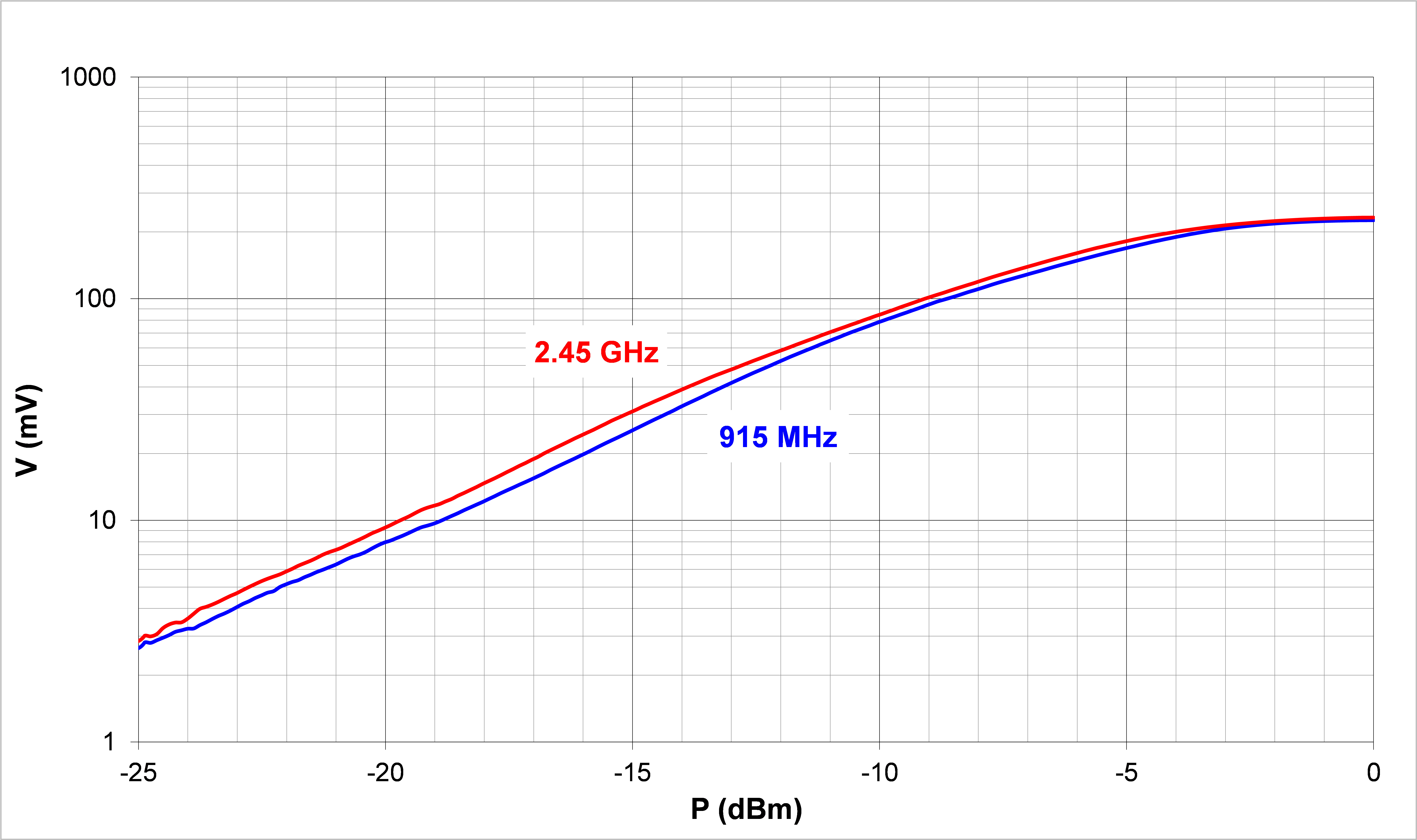

Typical transfer characteristic (Rload=33k, Ta=25C):
